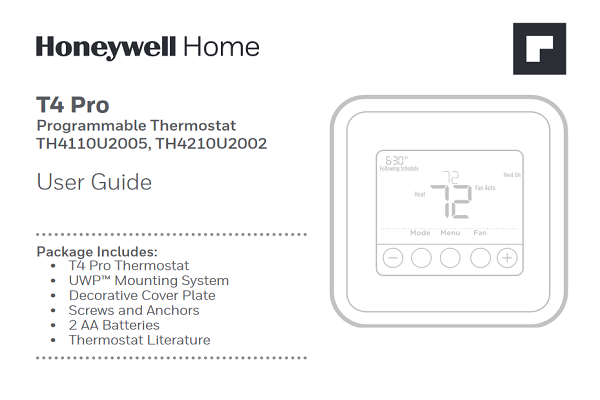

Honeywell T4 Pro Programmable Thermostat TH4110U2005, TH4210U2002 Manual
Honeywell T4 Specifications
Below is a product description and manual description of the Honeywell T4.
The Honeywell T4 thermostat is a reliable, durable device that provides comfortable, efficient lighting and heating of your home. This thermometer is well designed and meets your needs well. With the Honeywell T4 Thermostat, you can easily control your heating and cooling with an intelligent digital display. You can set the desired temperature and the thermostat will automatically adjust to maintain a comfortable temperature.
The T4 heater also offers a programmable feature, so you can adjust your heating and cooling times according to your daily routine. This can help you save energy by switching on the generator when you are not at home or when you are sleeping. With the Honeywell Home app, you can control the T4 thermostat remotely. This means that you can adjust the temperature, wherever you are, from your smartphone or tablet.
The Honeywell T4 heater is compatible with many heating systems including gas, oil, electric, heat pumps and underfloor heating. It provides reliable performance and accurate temperature control for optimal comfort in your home. In short, the Honeywell T4 thermostat is a high-quality, reliable option for controlling your heating and cooling, allowing you to combine comfort and efficiency.
Honeywell T4 Pro Program Schedule
You can program four time periods each day, with different settings for weekdays and weekends. We recommend the pre-sets (shown in the table below), since they can reduce your heating/cooling expenses.
- Wake - Set to the time you wake up and the temperature you want during the morning, until you leave for the day.
- Away - Set to the time you leave home and the temperature you want while you are away (usually an energy-saving level).
- Home - Set to the time you return home and the temperature you want during the evening, until bedtime.
- Sleep - Set to the time you go to bed and the temperature you want overnight (usually an energy-saving level).
NOTE: To temporarily or permanently override any of the above program schedules, see page 4.
Troubleshooting
If you have difficulty with your thermostat, please try the following suggestions. Most problems can be corrected quickly and easily.
Display is blank
- Check circuit breaker and reset if necessary.
- Make sure power switch for heating & cooling system is on.
- Make sure furnace door is closed securely.
- Make sure fresh AA alkaline batteries are correctly installed (see page 6).
Heating or cooling system does not respond
- Press Mode button to set system Heat (see page 2). Make sure the desired temperature is set higher than the inside temperature.
- Press Mode button to set system Cool (see page 2). Make sure the desired temperature is set lower than the inside temperature.
- Check circuit breaker and reset if necessary.
- Make sure power switch for heating & cooling system is on.
- Make sure furnace door is closed securely.
- Wait 5 minutes for the system to respond.
Temperature settings do not change
- If display says “unlock”; see page 5. If not, verify you are in the correct mode (heat, cool, em heat or auto); see page 2.
- If you are in the correct mode, but you cannot set the heat from 40 °F to 90 °F (4.5 °C to 32 °C), or set the cool from 50 °F to 99 °F (10 °C to 37 °C), you may have range-stops restricting your setting. Check with the installer to see if they set range-stops.
“Cool On” or “Heat On” is flashing
- Compressor protection feature is engaged. Wait 5 minutes for the system to restart safely, without damage to the compressor (see page 5).
Electrical Rating
Terminal |
Voltage (50 Hz/60 Hz) |
Running Current |
W Heating |
20 Vac - 30 Vac |
0.02 A - 1.0 A |
W2 (Aux) Heating (TH4210U only) |
20 Vac - 30 Vac |
0.02 A - 1.0 A |
E Emergency Heat (TH4210U only) |
20 Vac - 30 Vac |
0.02 A - 0.5 A |
Y Compressor Stage 1 |
20 Vac - 30 Vac |
0.02 A - 1.0 A |
G Fan |
20 Vac - 30 Vac |
0.02 A - 0.5 A |
O/B Changeover |
20 Vac - 30 Vac |
0.02 A - 0.5 A |
L/A Input |
20 Vac - 30 Vac |
0.02 A - 0.5 A |
